A serial port sends one bit after another on a single wire. An oscilloscope can show you those bits and turn them back into the characters that were sent. Here is how, with a real radio and a real scope, from the wiring to the decoded answer.
The line rests high: 3.3 V on an XBee. To send a character the transmitter pulls it low for one bit time (the start bit), sends the 8 data bits, lowest bit first, and returns the line high for at least one bit time (the stop bit). That is "8N1": 8 data bits, no parity bit, 1 stop bit, so 10 bit times a character.
The baud rate sets how long each bit lasts: one bit is 1 / baud rate. At 57,600 baud that is 1 / 57,600 = 17.4 µs, and a character is 10 × 17.4 µs = 174 µs. There is no clock wire: the receiver times every bit from the falling edge of the start bit. That is why the scope triggers on that edge, and why both ends must agree on the rate. Do not know it? Find the baud rate with the scope.
The XBee listens for commands only in command mode. One second of silence, +++ and another second of silence put it there (the default guard time, GT, is one second), and it answers OK. Commands are AT plus two letters, values in hexadecimal; Enter ends each one. Source: Digi's "XBee-PRO 900HP/XSC RF Modules S3 and S3B User Guide" (90002173), Command mode; the 2.4 GHz XBees work the same way. Other devices: send them any text.

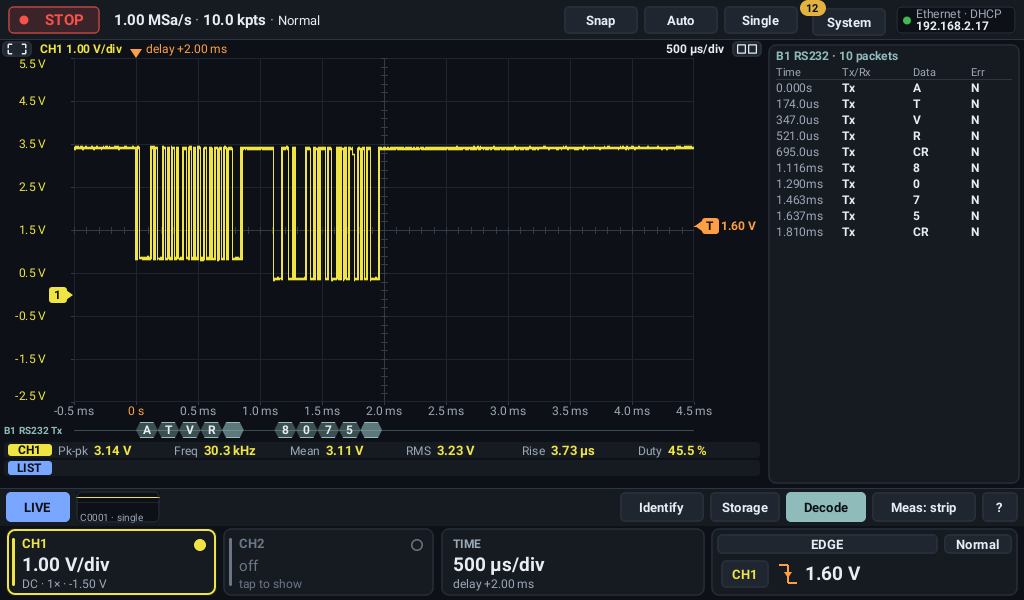

On our setup the probed line carried both the command, ATVR, and the answer, 8075. To be sure which is which, probe each direction on its own pin: DIN (pin 3) carries the commands sent to the radio, DOUT (pin 2) its replies. The RS232 decoder reads two lines, Tx and Rx: put CH1 on DOUT as Tx and CH2 on DIN as Rx, each with a threshold of 1.6 V, and trigger on CH2. The decoder then shows your command and the radio's answer, one after the other, in time order.
Two probes rarely fit side by side on the XBee itself: its pins are 2 mm apart. On Digi's XBee Grove Development Board, the board we use, the row of holes beside the socket, J3, repeats the XBee's left-hand pins on a 2.54 mm (0.1") pitch: pin 2 is DOUT, pin 3 is DIN and pin 10 is GND. The holes come empty, so solder in a 10-pin header first, then hook a probe on each pin. Leave the P11 jumper on UART: on Loopback the board wires the radio's output back to its input and the PC hears nothing. Source: Digi's "XBee Grove Development Board User Guide" (90001457).
| What you see | Why, and what to change |
|---|---|
| "Waiting for a trigger", nothing on screen | Nothing was sent while the scope was armed, or the level is outside the signal's swing. Arm first, then send. Why the scope waits. |
| Wrong characters, error marks | The baud rate does not match. Measure it (how), turn on Auto rate, or try the common rates: 9600, 19,200, 38,400, 57,600, 115,200. |
| Every character wrong at the right rate | The polarity is inverted. A logic-level UART idles high (Polarity Positive). A real RS-232 port idles at a negative voltage and needs Polarity Negative and a threshold near 0 V. On NovaOS the sheet says "Line idles high" or "low", and Auto polarity sets it from the line. |
| "Too few points a bit for 57.6 kb/s" | The screen holds too few samples for each bit. Use a faster time base, or press Stop: a stopped scope decodes its whole record. |
| A small 60 Hz wave and no characters | The probe is not on the serial line, or the device is off: that is mains hum on a floating input. What hum looks like. |
The scope captures bytes we know were sent and must decode exactly those bytes. On our Owon ADS802A running NovaOS the XBee-PRO S3B measured 57,236 to 57,724 baud over many runs, against its nominal 57,600: from 0.6 % slow to 0.2 % fast, well inside what a UART tolerates (how much). The decoder must still get every character right.
Any scope can show the bits; reading them by eye is slow but works: find the start bit, then read each bit time as 0 (low) or 1 (high), lowest bit first. A serial decoder does it for you and writes the characters under the trace. Most current scopes have one, sometimes as a paid option.
A UART is the circuit that sends and receives the characters. On a circuit board its line swings between 0 V and the logic supply (3.3 V or 5 V) and rests high: that is TTL or logic-level serial. RS-232 is an electrical standard for cables: a 1 (and the resting line) is a negative voltage, between −3 and −15 V, and a 0 a positive one. The characters are the same; the decoder's polarity and threshold differ.
Probe the output of the device you want to read: its TX. One device's TX is the other's RX. On a through-hole XBee, DOUT (pin 2) is what the radio sends (its replies) and DIN (pin 3) what it receives (the commands).
Because every character starts with one: the line rests high and the start bit pulls it low. A falling-edge trigger at half the swing stops the scope at the start of a character, so the capture and the decode begin there.
At these rates a 1× probe works too, but a 10× probe loads the line ten times less (10 MΩ instead of 1 MΩ) and has far more bandwidth. Set the scope's probe setting to match, or every voltage reads ten times off.
Measure one bit, divide one by it, snap to a standard rate; the U trick, how close is close enough, and when to trust the scope's Auto.
Why the scope waits for a triggerAuto, Normal and Single; slope and level; and why a level that looks right still catches nothing on an idle line.
An XBee's power-up commandsProbe DIN and DOUT, capture the whole start-up in one deep record, and read the network, channels and addresses the device sets.
